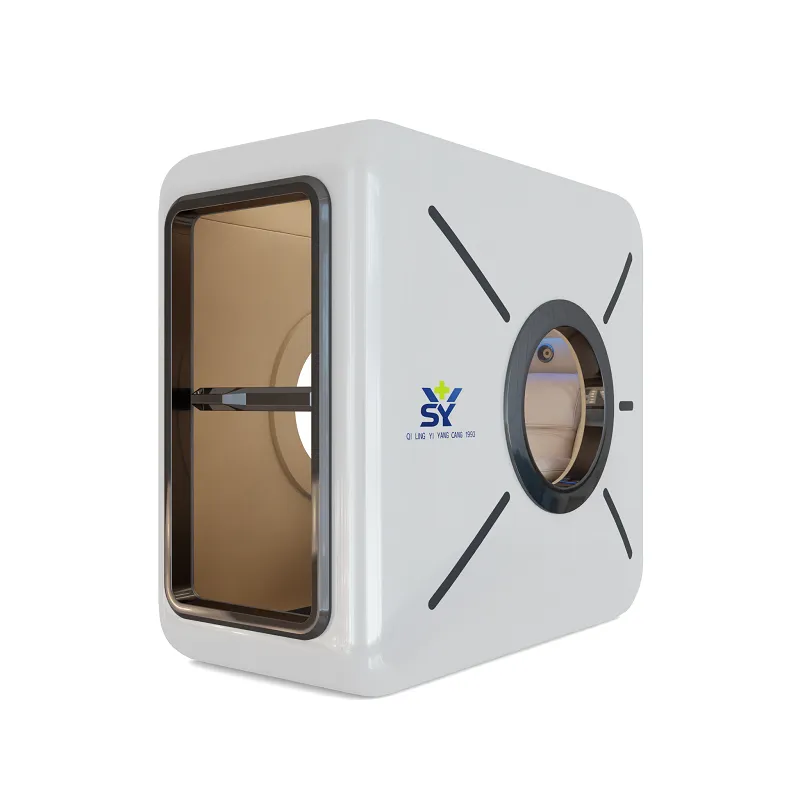

The YCDY-F03D stands out with its unique aircraft-style windows (φ100*2), offering an enhanced visual experience during therapy sessions. Combining carbon fiber construction with a zero-gravity massage sofa, it delivers both comfort and durability. The model maintains 93%±3 oxygen purity using French-imported molecular sieve technology. With comprehensive environmental controls and six-stage air filtration, this chamber provides a premium, relaxing therapy environment for home users seeking both functionality and aesthetic appeal.
-
Aircraft-Style Observation
WindowsFeatures two φ100mm aircraft windows for expanded visibility and reduced confinement feeling.
-
Zero-Gravity Massage
ComfortIncludes electric genuine leather sofa with six massage modes for therapeutic relaxation.
-
Premium Composite
StructureCarbon fiber construction ensures lightweight durability and long-term reliability.
-
Automated Access
SystemAviation aluminum automatic retracting door with explosion-proof PC panel for safe operation.
-
High-Performance Oxygen
ProductionFrench-imported molecular sieve technology delivers consistent 93%±3 purity oxygen.
-
Comprehensive Climate
ManagementExplosion-proof AC system and six-stage filtration maintain optimal interior environment.
Technical Specifications
| Model | Parameter and Performance Indicators | ||
| 1 Person Sitting Chamber 2.0 ATA YCMY-F03D Carbon Fiber Composite |
Main Unit | Main Unit Model | O2sy10c |
| Main Unit Weight | 100 KG | ||
| Main Unit Dimensions | W600 × L1030 × H1400 | ||
| Power Rating | 3300W | ||
| Pressure Control | 10-100 KPA | ||
| Air Compressor | Domestic Oil-Free Compressor | ||
| Oxygen Sieve | Imported Lithium-Based Molecular Sieve | ||
| Air Purification | Six-Stage Filtration | ||
| Fresh Air System | Intelligent Continuous Uninterrupted 240L/min | ||
| Pure Oxygen System | Oxygen Purity 93% ± 3%, 10L/min | ||
| Main Control System | ARM Main Controller (Expandable) | ||
|
|
Chamber | Cabin Weight | 520 KG |
| Cabin Measurements | Length: 2000mm Width : 1170mm Height: 1850mm |
||
| Frame Material | Special High-Strength 306 Stainless Steel | ||
| Surface Coating | Piano Art Baking Paint (Single Color) | ||
| Cabin Door | Aviation Aluminum Alloy Automatic Retractable Door Hinge + Aviation PC Explosion-Proof Door | ||
| Aviation Window Dimensions | 100mm Diameter*2 | ||
| Assembly Method | Integrated Assembly | ||
| Lighting System | LED Cold Light Source Dual System + Ambient Lighting | ||
| Inhalation Method | Diffuse/Nasal Inhalation | ||
| Air Conditioning System | Oxygen Chamber Water-Cooled Explosion-Proof Air Conditioner | ||
| Sofa Function | Zero Gravity Electric Leather Sofa with Six-Mode Massage System | ||
| Control System | External 10-inch Control Panel + Internal 11.5-inch Tablet | ||
| Sensor System | Oxygen Concentration, Temperature, Humidity, Oxygen Flow, Smoke Detection Sensors | ||
| Communication System | Internal-External Wireless Telephone | ||
| Warranty | Full Machine Free Warranty Period (including all parts) | 1 year | |
| Warranty Costs After Warranty Period | After warranty expires: Charged according to standard part prices. | ||
Application Scenario
FAQ
-
Q: What are the benefits of the aircraft-style windows?A: The two φ100mm windows provide enhanced visibility, reduce confined space sensation, and add an aesthetic premium touch to the chamber.
-
Q: Does the massage sofa offer multiple settings?A: Yes, the zero-gravity electric genuine leather sofa includes six different massage modes for customized comfort during therapy.
-
Q: How does the carbon fiber material benefit this model?A: Carbon fiber provides superior strength-to-weight ratio, ensuring durability while maintaining a manageable total weight of 520kg.
-
Q: What safety features are included in the door system?A: The aviation aluminum automatic retracting door combines with explosion-proof PC panel to ensure safe, reliable operation.
-
Q: What is the oxygen output specification?A: It delivers 10L/min of 93%±3 purity oxygen using high-quality French-imported molecular sieve technology.
-
Q: How does the environmental control system work?A: The dedicated explosion-proof AC system and six-stage air filtration maintain perfect temperature, humidity and air quality inside the chamber.
