The YCMY-G02D represents luxury in personal oxygen therapy, featuring a robust 306 stainless steel frame with elegant piano finish. This model includes dual 15.6-inch external control panels and a 34-inch smart TV for superior entertainment. With enhanced 15L/min oxygen purity at 93%±3 and comprehensive six-stage air filtration, it delivers premium therapeutic experience. The medical-grade eco-leather sofa and explosion-proof sliding door ensure both comfort and safety, making it ideal for discerning users seeking advanced wellness solutions.
-
Dual Large Control
DisplaysFeatures two external 15.6-inch control panels plus an 11.5-inch Honor tablet for enhanced operation.
-
Entertainment
IntegrationIncludes a 34-inch smart multimedia TV for immersive user experience.
-
High-Capacity Oxygen
OutputDelivers 15L/min oxygen flow with consistent 93%±3 purity level.
-
Robust
ConstructionBuilt with special 306 stainless steel and explosion-proof sliding door mechanism.
-
Advanced Climate
ControlEquipped with dedicated explosion-proof AC system for optimal interior environment.
-
Professional Grade
FiltrationSix-stage air purification with continuous 240L/min fresh air system.
Technical Specifications
| Model | Parameter and Performance Indicators | ||
| 2 Person Sitting Chamber 2.0 ATA YCMY-G02D Stainless Steel |
Main Unit | Main Unit Model | O2sy10c |
| Main Unit Weight | 100 KG | ||
| Main Unit Dimensions | W600 × L1030 × H1400 | ||
| Power Rating | 3300W | ||
| Pressure Control | 10-100 KPA | ||
| Air Compressor | Domestic Oil-Free Compressor | ||
| Oxygen Sieve | Imported Lithium-Based Molecular Sieve | ||
| Air Purification | Six-Stage Filtration | ||
| Fresh Air System | Intelligent Continuous Uninterrupted 240L/min | ||
| Pure Oxygen System | Oxygen Purity 93% ± 3%, 15L/min | ||
| Main Control System | ARM Main Controller (Expandable) | ||
|
|
Chamber | Cabin Weight | 500 KG |
| Cabin Measurements | Length: 2300mm Diameter:1680mm Height: 1780mm |
||

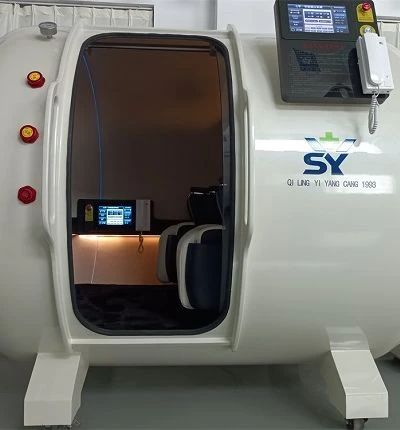

| Frame Material | Special High-Strength 306 Stainless Steel | ||

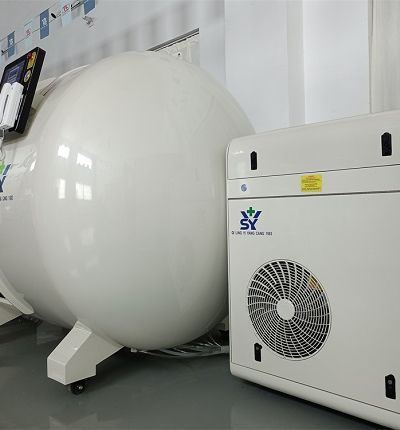

| Surface Coating | Piano Art Baking Paint (Single Color) | ||

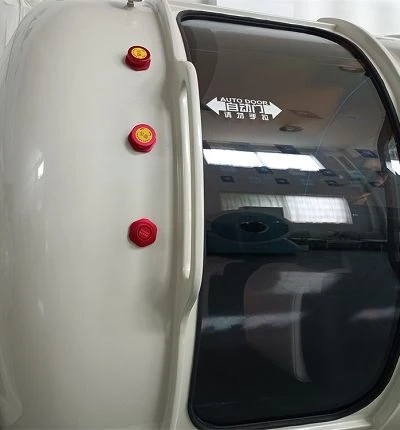

| Cabin Door | Stainless Steel Sliding Track + Aviation PC Explosion-Proof Door | ||
| Assembly Method | Integrated Assembly | ||

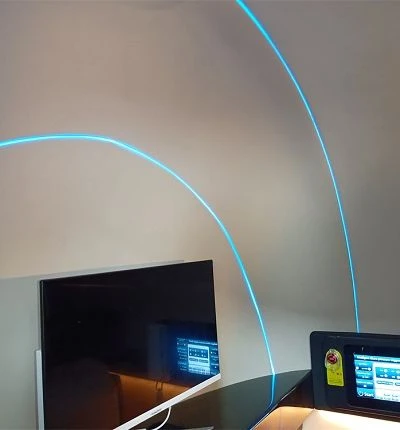

| Lighting System | LED Cold Light Source Dual System + Ambient Lighting | ||

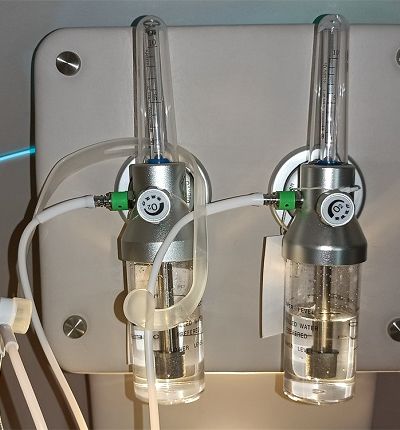

| Inhalation Method | Diffuse/Nasal Inhalation | ||

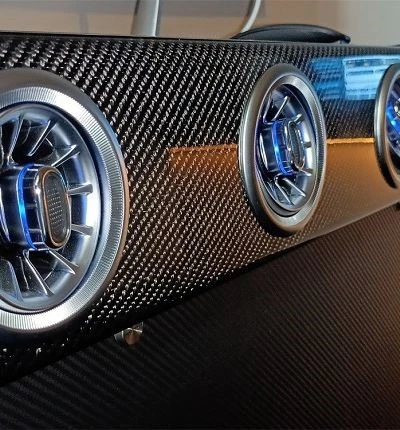

| Air Conditioning System | Oxygen Chamber Water-Cooled Explosion-Proof Air Conditioner | ||
|
|

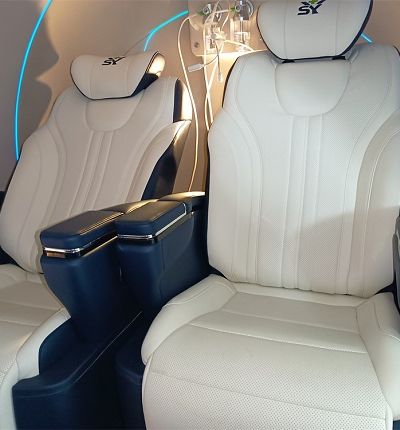

Sofa Function | Medical Eco-Leather Sofa | |

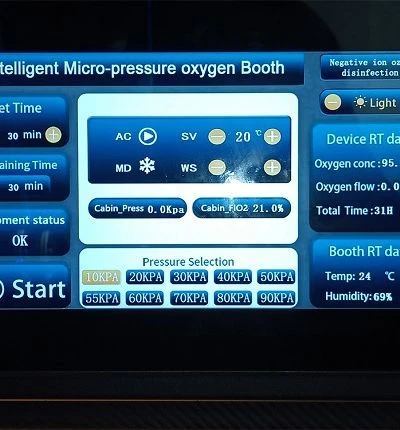

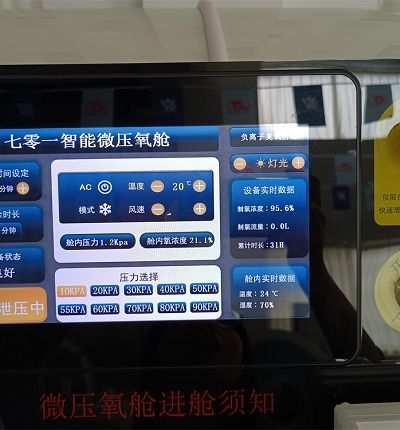

| Control System | External 15.6-inch Control Panel × 2 + Honor 11.5-inch Tablet | ||
| Sensor System | Oxygen Concentration, Temperature, Humidity, Oxygen Flow, Smoke Detection Sensors | ||
| Entertainment System | 34-inch Smart Multimedia TV | ||

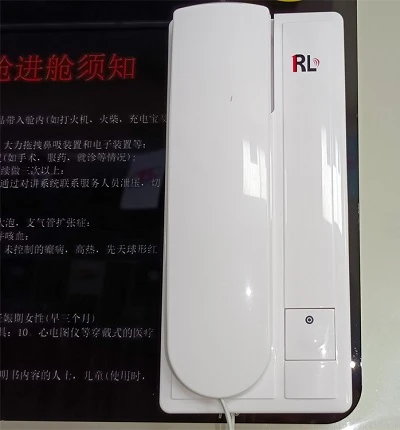

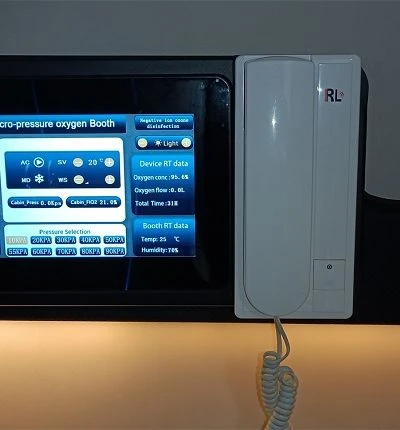

| Communication System | Internal-External Wireless Telephone | ||
| Warranty | Full Machine Free Warranty Period (including all parts) | 1 year | |
| Warranty Costs After Warranty Period | After warranty expires: Charged according to standard part prices. | ||
Application Scenario
FAQ
-
Q: What makes the control system of this model different?A: It features dual 15.6-inch external control panels along with an 11.5-inch Honor tablet, providing more flexible and convenient operation.
-
Q: What entertainment features are included?A: This model is equipped with a 34-inch smart multimedia TV, offering enhanced entertainment during therapy sessions.
-
Q: What is the oxygen output capacity?A: It delivers a higher flow rate of 15L/min while maintaining oxygen purity at 93%±3, suitable for more intensive therapy needs.
-
Q: How does the climate control system work?A: The chamber features a dedicated explosion-proof water-cooled AC system specifically designed for oxygen chamber environments.
-
Q: What safety certifications does this model have?A: While specific certifications depend on regional standards, it includes multiple safety sensors and explosion-proof doors meeting industry safety requirements.
-
Q: What is the power consumption of this unit?A: It operates at 3300W, designed to support all advanced features including the larger entertainment system and enhanced oxygen output.
