Product Overview

The YCDY-G01D is a premium mild hyperbaric oxygen chamber designed for home and personal wellness use. Built with high-strength 306 stainless steel and finished with elegant piano lacquer, it ensures safety and style. Equipped with dual LED lighting, an anti-explosion AC system, and multi-sensor monitoring, it offers both comfort and reliability. Users can enjoy seamless control via an external 10-inch panel and an 11.5-inch Honor tablet. Ideal for oxygen therapy enthusiasts seeking a safe and user-friendly solution.

High-Strength
Frame

Made of special 306 stainless steel for enhanced safety and durability.
Dual Lighting
System

Features LED cold light and ambient lighting for a comfortable interior atmosphere.
Multi-Sensor Safety
Monitoring

Includes oxygen concentration, temperature, humidity, flow, and smoke detection sensors.

Intelligent Control
System

External 10-inch control panel + 11.5-inch Honor tablet for easy operation.
Advanced Air
Filtration

Six-stage filtration with continuous 240L/min fresh air system.
Comfort-Optimized
Interior

Includes medical-grade eco-leather mattress and anti-explosion sliding door.

Technical Specifications

Model	Parameter and Performance Indicators
1 Person Sitting Chamber 2.0 ATA YCMY-G01D Stainless Steel	Main Unit	Main Unit Model	O2sy10c
		Main Unit Weight	100 KG
		Main Unit Dimensions	W600 × L1030 × H1400
		Power Rating	2000W
		Pressure Control	10-100 KPA
		Air Compressor	Domestic Oil-Free Compressor
		Oxygen Sieve	Imported Lithium-Based Molecular Sieve
		Air Purification	Six-Stage Filtration
		Fresh Air System	Intelligent Continuous Uninterrupted 240L/min
		Pure Oxygen System	Oxygen Purity 93% ± 3%, 8L/min
		Main Control System	ARM Main Controller (Expandable)
	Chamber	Cabin Weight	300 KG
		Cabin Measurements	Length: 2300mm Diameter: 900mm Height: 1000mm
		Frame Material	Special High-Strength 306 Stainless Steel
		Surface Coating	Piano Art Baking Paint (Single Color)
		Cabin Door	Stainless Steel Sliding Track + Aviation PC Explosion-Proof Door
		Assembly Method	Integrated Assembly
		Lighting System	LED Cold Light Source Dual System + Ambient Lighting
		Inhalation Method	Diffuse/Nasal Inhalation
		Air Conditioning System	Oxygen Chamber Water-Cooled Explosion-Proof Air Conditioner
		Sofa Function	Medical Eco-Leather Mattress
		Control System	External 10-inch Control Panel + Honor 11.5-inch Tablet
		Sensor System	Oxygen Concentration, Temperature, Humidity, Oxygen Flow, Smoke Detection Sensors
		Entertainment System	14-inch Tablet
		Communication System	Internal-External Wireless Telephone
	Warranty	Full Machine Free Warranty Period (including all parts)	1 year
	Warranty	Warranty Costs After Warranty Period	After warranty expires: Charged according to standard part prices.

The Benefits of a Lying Position During Oxygen Sessions

Lying down offers a different way to experience an oxygen session compared with a seated position.

Natural Body Position

A lying position allows users to maintain a more natural horizontal posture throughout an oxygen session, rather than remaining upright in a fixed seated position. This configuration can feel less restrictive and allows the body to remain in a familiar resting posture while the session is underway.
Full-Body Support

A horizontal position distributes body support across a larger contact area, allowing the back, legs, and other parts of the body to rest more naturally. Compared with a fixed seat, this provides a more comprehensive support arrangement for users who prefer to remain lying down during their session.
Greater Freedom of Movement

A lying configuration gives users more flexibility to adjust their body position than a conventional seated setup. Small posture adjustments can be made within the available cabin space, reducing the feeling of being confined to one fixed sitting position throughout the session.
Relaxed Session Experience

The lying position is well suited to a quieter, lower-activity session environment. Users can remain in a supported position while resting, listening to music, reading, or simply taking time to relax, depending on the available chamber features and their personal preferences.

What Makes This Single Person Lying Hard Shell Hyperbaric Chamber Different?

Designed specifically for single-person lying use, this stainless steel hyperbaric chamber brings together structural strength, controlled operating performance, and carefully considered interior features for individual oxygen sessions.

Structural Durability

5.0 mm Stainless Steel Chamber Body

The chamber body is constructed from 5.0 mm high-strength 306 stainless steel. The substantial wall thickness is designed to handle the higher structural stress associated with the chamber's lying configuration, while providing corrosion resistance and a surface that is suitable for routine cleaning.

Integrated Welded Construction

The chamber is welded and fully assembled at the factory as an integrated structure before delivery. This factory-finished construction eliminates the need for additional structural splicing on site and helps maintain consistent assembly quality throughout the chamber.

Stainless Steel Reinforcement Ribs

Stainless steel reinforcement ribs are integrated into the chamber structure to provide additional support where required. Using the same stainless steel material for both the chamber body and reinforcement helps maintain material consistency and avoids potential electrochemical corrosion associated with dissimilar metals.

Anti-Explosion Sliding Door

The chamber uses an anti-explosion sliding door with a stainless steel sliding track and aviation-grade PC door panel. The sliding configuration provides controlled access to the cabin while the reinforced door construction forms an integral part of the chamber's overall enclosure and safety design.

Operating Performance

Linear Pressure Adjustment

The chamber operates at 2.0 ATA with a pressure control range of 10–100 kPa. Its linear pressure adjustment system supports gradual changes during pressurization and decompression, helping maintain a controlled operating process throughout each session.

Stable Oxygen Delivery

The oxygen system provides an oxygen purity of 93% ± 3% at a flow rate of 8 L/min. An imported lithium-based molecular sieve supports oxygen generation, while the oil-free air compressor provides the compressed air required for system operation.

Continuous Fresh-Air Supply

A continuous 240 L/min fresh-air system works with six-stage air filtration to manage the air supplied to the chamber. This configuration supports ongoing air renewal during sessions and helps maintain a more suitable internal environment during repeated use.

Multi-Parameter Monitoring

The chamber monitors key operating conditions including oxygen concentration, temperature, humidity, oxygen flow, and smoke detection. These sensors provide real-time operating information, allowing the chamber environment and system status to be monitored throughout each session.

User Experience

Medical Eco-Leather Mattress

The chamber is equipped with a medical eco-leather mattress designed for the lying configuration. Its cushioned surface provides continuous body support during a session, while the smooth material is practical for routine cleaning between uses.

Temperature-Controlled Interior

A water-cooled, explosion-proof air-conditioning system helps regulate the temperature inside the chamber during operation. This allows users to remain in a more stable thermal environment, particularly during longer oxygen sessions.

Dual Lighting Environment

The interior combines an LED cold-light source with ambient lighting to provide two complementary lighting modes. This allows the cabin environment to be adjusted between functional illumination and a softer atmosphere according to the session setting.

Integrated Entertainment System

An in-chamber entertainment system allows users to access media during their oxygen sessions without introducing additional devices into the cabin. Bluetooth music and the dedicated entertainment screen provide options for listening or viewing while the session is underway.

Designed Around Long-Term Equipment Management

Long-term chamber use requires more than reliable operation; it also depends on how easily the equipment can be operated, supervised, and maintained over time.

Repeated Operation

The equipment is configured to support a repeatable daily workflow. The integrated control system allows operators to manage pressurization, oxygen delivery, and session timing through a consistent, step-by-step process-reducing the need for repeated manual adjustments across consecutive sessions.
Assisted-Use Configuration

The horizontal hyperbaric chamber is equipped with two external touchscreen control panels, allowing operators to manage the chamber's key functions from outside during a session. Inside the chamber, a 14-inch Tablet provides access to media functions, while the internal-external communication system supports convenient communication between the user and operator.
Environmental Monitoring

Regular use requires operators to remain aware of the chamber's internal conditions throughout its service life. Monitoring information provides a basis for reviewing operating conditions over time, helping operators identify changes that may require attention and maintain appropriate records for routine equipment management.
Equipment Maintenance

The fully welded, factory-assembled unit eliminates on-site structural splicing. Its stainless steel surfaces resist corrosion and can be cleaned using standard procedures, supporting straightforward routine maintenance without specialized treatments or frequent component replacement.

Where Can This Single Person Lying Hard Shell Hyperbaric Chamber Be Used?

This single person hyperbaric chamber is designed to fit a range of personal, professional, and service-oriented environments, from private home use to specialized care and wellness facilities.

Corporate & Business Centers
Aesthetic & Anti-Aging Centers

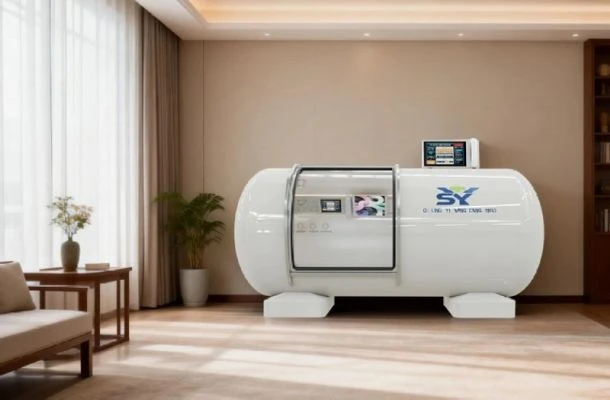

Home & Personal Use
Medical & Rehabilitation Clinics

Corporate & Business Centers

Corporate wellness spaces and executive health facilities can use the hyperbaric chamber for lying down to provide private oxygen sessions in a professional environment. Its refined piano-art finish gives the equipment a polished appearance that can integrate naturally into dedicated wellness rooms, executive health spaces, or other business settings.
Aesthetic & Anti-Aging Centers

Aesthetic and anti-aging centers can incorporate the 2.0 ATA hyperbaric chamber into personalized beauty and age-management services. The lying configuration and medical eco-leather mattress provide a more comfortable setting for individual sessions, while the refined interior helps create a premium experience that complements aesthetic service environments.
Home & Personal Use

For home users, the hard shell hyperbaric chamber provides a private setting for regular individual oxygen sessions. Its structural design keeps floor-loading requirements manageable for suitable residential installations, while integrated air conditioning and manual and automatic safety valves contribute to a safer and more practical home-use environment.
Medical & Rehabilitation Clinics

Medical and rehabilitation clinics can incorporate the HBOT chamber into professional oxygen therapy and rehabilitation environments where its intended use meets applicable requirements. The stainless steel cabin supports routine cleaning and hygiene management, while factory-integrated welding means no additional structural splicing is required during on-site installation.

Why Choose Our Single Person Lying Hard Shell Hyperbaric Chamber Manufacturing Solutions

With extensive manufacturing expertise, 701 provides single-person lying hard shell hyperbaric chambers engineered for structural strength, reliable operation, and long-term use, supported by comprehensive technical assistance.

Factory Direct

As a direct manufacturer with over 60 years of design heritage, we eliminate intermediary markups, offering competitive factory-direct pricing without compromising quality. Every chamber is produced in our ISO-certified facility under strict quality control standards.

OEM/ODM Support

We provide comprehensive OEM customization services, including chamber configurations, exterior finishes, interior layouts, control systems, and branding. ODM solutions are also available for complete private-label production.

Strict Quality Control

All production processes follow ISO 13485 and CE requirements. Before shipment, every chamber undergoes pre-delivery inspection, including pressure holding, oxygen system, and ventilation testing. Structural materials are from certified suppliers, and core components from leading brands.

Institute-lead drafter of the Industry Regulations

Authoritative Manufacturer in China

With over near 60 years of development, we are proud to be the institute-lead drafter of the TSG 24-2015 Safety Technical Regulations for Hyperbaric Oxygen Chambers-our company embodies the highest standards in the industry.

Packaging & Shipping Experience

Our logistics team ensures each chamber is professionally packed for international shipping. With over 60 years of manufacturing heritage, we handle customs documentation and freight coordination to deliver your order safely and on time.

FAQ

Q: What is the main material of the chamber's frame?

A: It is constructed from special high-strength 306 stainless steel, ensuring long-term durability and safety.
Q: How is the internal environment and comfort controlled?

A: The chamber features a dedicated explosion-proof AC system, a medical-grade eco-leather sofa, and dual LED lighting with ambient lights for a comfortable experience.
Q: What safety features are included?

A: It is equipped with multiple sensors to monitor oxygen concentration, temperature, humidity, flow, and smoke, alongside an explosion-proof sliding door for comprehensive safety.
Q: How is the chamber operated?

A: Operation is simple via an external 10-inch control panel and an included 11.5-inch Honor tablet, allowing easy management of settings.
Q: What is the oxygen purity level and flow rate?

A: The system delivers oxygen with a purity of 93%±3 at a flow rate of 8L/min.
Q: Is the compressor oil-free and what are the power requirements?

A: Yes, it uses a domestic oil-free compressor and operates on a standard 2000W power supply.
Q: Does 701 provide a warranty for the hyperbaric chamber?

A: Yes. 701 provides a 1-year free warranty for the complete machine, including all parts. After the warranty period expires, replacement parts are charged according to standard parts pricing.
