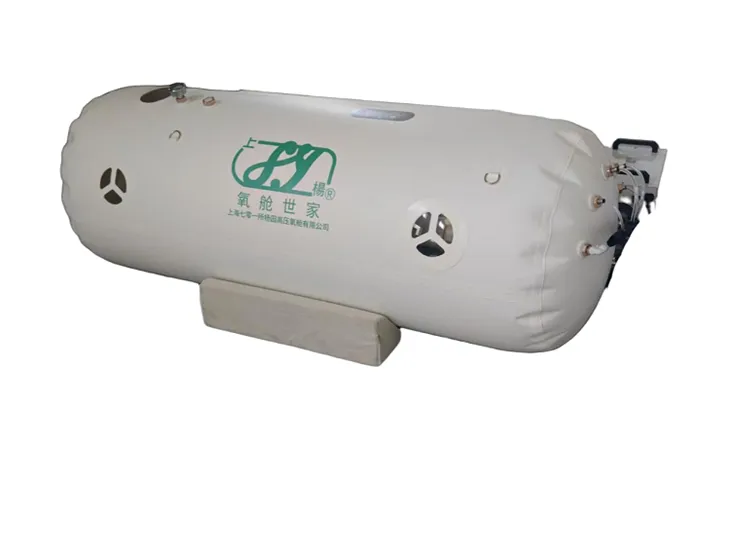

The 701 Portable Lying Hyperbaric Chamber features a medical-grade TPU shell, effectively ensuring controllable internal pressure between 1.1 ATA and 1.5 ATA. Its spacious interior provides ample room for comfortable lying down. Equipped with both automatic and manual pressure relief valves, it offers users dual safety protection. It is an ideal companion for home oxygen therapy.
-
Pressure
SafetyFully automated constant pressure
-
Comfortable
InteriorMemory foam pillow, contoured foam pad
-
Controlled
OxygenAdjustable oxygen concentration settings
-
Air
PurityDual air filtration system
-
Easy
ControlDual touchscreen options
Technical Specifications
|
Main Unit |
Dimensions |
≤600mmx550mmx1000mm |
|
Weight |
≤55kg |
|
|
Compressor Noise |
≤65dB(Average) |
|
|
Air Filtration |
Dual air filtration system |
|
|
Operating/Storage Environment |
Operating Temperature: -10°C to 40°C Storage Temperature: -20°C to 60°C Relative Humidity: 20% to 85% |
|
|
Oxygen Concentration |
93±3% |
|
|
Oxygen Flow Rate |
≥4L/min(at oxygen concentration of 93% ± 3%) |
|
|
Chamber |
Capacity |
1 Person |
|
Chamber Dimensions |
2200mm*900mm*900mm |
|
|
Total Weight of Chamber Section |
18kg (Inner frame: 7kg) |
|
|
Working Pressure |
1.1ATA -1.5ATA |
|
|
Design Pressure |
≥50Kpa |
|
|
Pressure-bearing Safety Protection |
Equipped with automatic and manual pressure relief protection functions. |
|
|
Pressurization Safety Mechanism |
Fully automatic constant pressure design. |
|
|
Chamber Oxygen Concentration Setting |
Equipped with chamber oxygen concentration setting and maintenance function. |
|
|
Chamber Material |
TPU |
|
|
Parameter Display |
Displays chamber pressure, temperature, humidity, oxygen concentration, and oxygen flow rate. |
|
|
Chamber Configuration |
Memory foam pillow, curved foam pad, oxygen mask. |
|
|
Warranty |
Full Machine Free Warranty Period (including all parts) |
1 year |
|
Warranty Costs After Warranty Period |
After warranty expires: Charged according to standard part prices. |
Application Scenario
FAQ
-
Q: Safety is my top priority. Is this chamber safe?A: The chamber is assembled using thermal fusion technology, ensuring overall safety, sturdiness, and crack resistance.
-
Q: What is TPU material? Is it better than a hard shell?A: TPU is a high-performance polymer material known for its excellent wear resistance, high strength, and impact resistance. It is also oil-resistant, waterproof, mold-proof, and particularly outstanding in cold resistance. It is environmentally friendly, flame-retardant, and free of harmful substances. Compared to hard-shell chambers, it is more eco-friendly and lightweight.
-
Q: What does 1.5 ATA working pressure mean?A: A working pressure of 1.5 ATA is the maximum working pressure for soft-shell chambers, equivalent to 50 kPa of pressure.
-
Q: How is the pressure inside the chamber controlled? Is the operation complicated?A: The chamber is equipped with a touchscreen display, allowing users inside to perform operations such as pressurization and depressurization on their own. Additionally, a manual pressure release device is provided.
-
Q: What if there's a power outage or equipment failure? Will I be trapped inside?A: No, the chamber is equipped with a manual pressure release device. In the event of a power outage, users can manually activate it to depressurize and exit the chamber.
