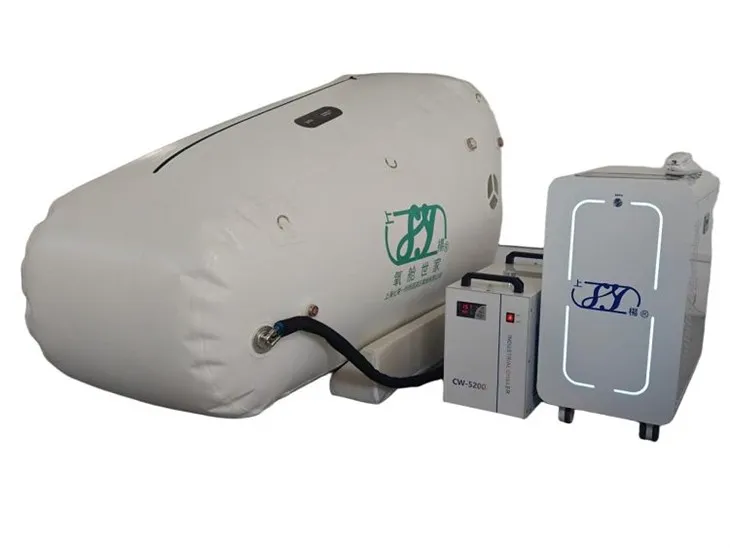

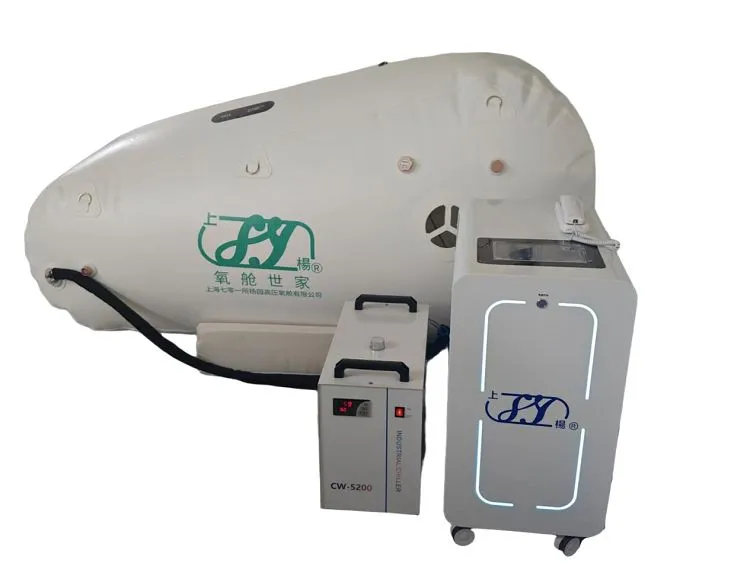

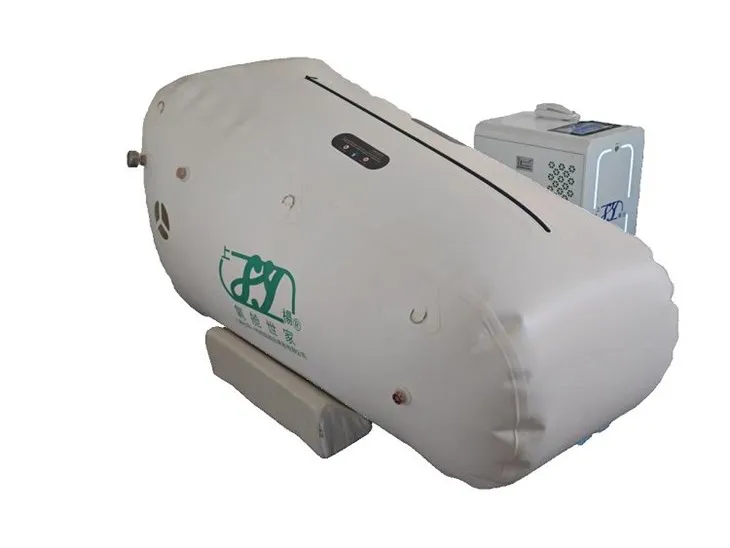

The 701 Portable Reclining Hyperbaric Chamber offers a spacious 2.2-meter interior with a reclining design for comfortable inclined positioning. Chamber pressure is adjustable from 1.1 to 1.5 ATA, supported by an automatic constant-pressure system for safety. Internal and external noise remain within comfortable levels, providing a safe, effective, and pleasant oxygen therapy experience.
-
Pressure
SafetyFully automated constant pressure
-
Controlled
OxygenAdjustable oxygen concentration settings
-
Air
PurityDual air filtration system
-
Safety
MaterialMedical-Grade TPU Shell
-
Easy
ControlDual Touchscreen Options (Inside & Outside)
Technical Specifications
|
Main Unit |
Dimensions |
≤600mmx550mmx1000mm |
|
Weight |
≤55kg |
|
|
Compressor Noise |
≤65dB(Average) |
|
|
Air Filtration |
Dual air filtration system |
|
|
Operating/Storage Environment |
Operating Temperature: -10°C to 40°C Storage Temperature: -20°C to 60°C Relative Humidity: 20% to 85% |
|
|
Oxygen Concentration |
93±3% |
|
|
Oxygen Flow Rate |
≥4L/min(at oxygen concentration of 93% ± 3%) |
|
|
Chamber |
Capacity |
1 Person |
|
Chamber Dimensions |
2200mm*700mm*1100mm |
|
|
Total Weight of Chamber Section |
23kg (Inner frame: 8kg) |
|
|
Working Pressure |
1.1ATA -1.5ATA |
|
|
Design Pressure |
≥50Kpa |
|
|
Pressure-bearing Safety Protection |
Equipped with automatic and manual pressure relief protection functions. |
|
|
Pressurization Safety Mechanism |
Fully automatic constant pressure design. |
|
|
Chamber Oxygen Concentration Setting |
Equipped with chamber oxygen concentration setting and maintenance function. |
|
|
Chamber Material |
TPU |
|
|
Parameter Display |
Displays chamber pressure, temperature, humidity, oxygen concentration, and oxygen flow rate. |
|
|
Chamber Configuration |
Memory foam pillow, curved foam pad, oxygen mask. |
|
|
Warranty |
Full Machine Free Warranty Period (including all parts) |
1 year |
|
Warranty Costs After Warranty Period |
After warranty expires: Charged according to standard part prices. |
Application Scenario
FAQ
-
Q: Is it easy to clean and disinfect? How do I maintain it?A: It is advisable to avoid using disinfectants. Simply wipe with a cloth and clean water.
-
Q: Does the installation require a special space or power source?A: No special requirements are needed. Avoid direct sunlight exposure.
-
Q: Is it noisy? Will it disturb my family while operating?A: The main unit typically operates at around 60 decibels of noise.
-
Q: What are its dimensions? Is it easy to store away?A: It occupies approximately 2 square meters of space. Once set up, it does not need to be stored away.
-
Q: Is there a warranty and after-sales service after purchase?A: After purchase, a warranty and after-sales service (1 year) are provided. Online communication is also available.
